How to Add a 360 Camera to a Car: Simple Installation Guide
Installing a 360-degree panoramic camera system in your car can significantly enhance your driving experience by providing a comprehensive view around your vehicle. Here’s a detailed guide based on the latest information:
Preparation for Installation
Gather Necessary Tools and Accessories:
Screwdriver set: For removing panels and securing mounts.
Trim removal tools: To pry open vehicle interior without causing damage.
Camera kit with wiring and mount: Ensure compatibility with your vehicle make and model.
Electrical tape or heat shrink tubing: For secure wire connections.
Multimeter (optional): To check electrical connections.
Installation Steps
Wire Connection Diagram:
Black-->front camera
Yellow-->rear camera
Red-->left camera
Blue-->right camera
Note: Please check whether the radio supports 360 camera before purchase 1. Android host (12pin plug) 2. The radio comes with panoramic software.
Wiring and Power Considerations:
Power source: Each camera needs a power source. Wire them correctly to ensure constant operation. The wires should be routed neatly, avoiding places where they might get pinched or damaged. Connect to the car’s power system: Often, you’ll tap into the wiring of the backup lights or interior lighting, so the cameras turn on automatically when you start your car or engage reverse.
Calibrating Your 360 Camera System:
Camera calibration: Calibration aligns the camera angles to stitch together a cohesive surround view. This process might involve software provided by your camera system manufacturer, and it’s typically done through an on-screen guide or a smartphone app. Follow the instructions carefully to ensure accuracy and the best possible functionality of your 360 cameras.
Test the Camera: Check that the live feed works and covers the desired area. Test motion detection and other features to ensure everything is functioning correctly.
Additional Tips:
Regular Maintenance: Keep the camera lenses clean and free from obstructions to ensure optimal performance. Troubleshooting: If you encounter any issues, refer to the camera’s user manual or contact the manufacturer’s customer support for assistance.
By following these steps, you can successfully install a 360-degree panoramic camera system in your car, enhancing your visibility and safety while driving.
Description:
[Signal Stability, High Quality Material]Upgraded Version High-quality pure copper core, which can achieve the best conductivity, prevent the loss of video signals, and there are two more protection methods to ensure stable signal transmission. The cable's surface layer is made of of durable PVC material, resistant to high temperature, anti-corrosion, wear resistance, sturdy, not easy cracked, windproof, rainproof and shockproof, can be used outdoor. [Compatible Devices]Support the use of video or audio equipment with RCA type jacks of rear-view cameras, TV boxes, DVD players/recorders, parking monitor display,VCRs, TVs, and camcorders. [Detection Wire Purpose]The red wire at the end of the video cable is the detection wire, which is an extra power cord inside the video cable. Its function is-you can easily get power from the rear through the reversing lights and use it for the front. Conversely, power can be supplied from the front to the rear.
Specification:

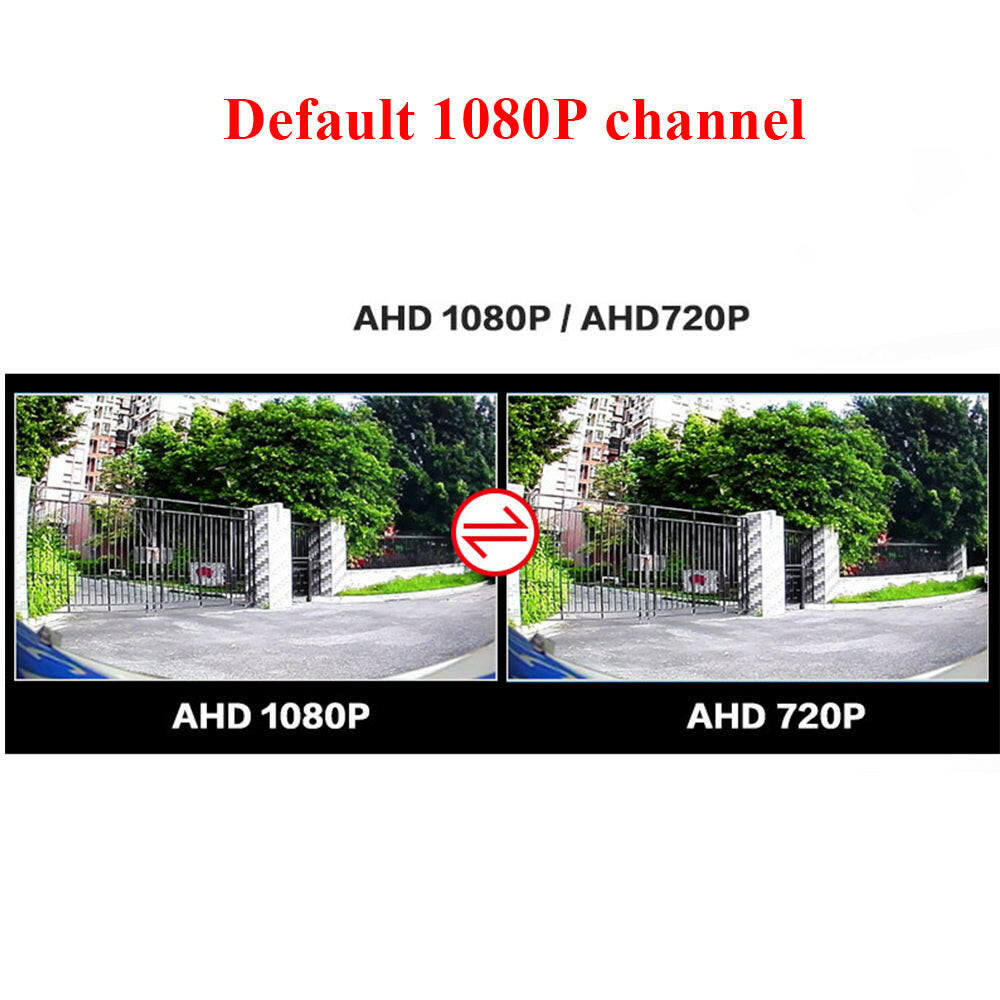

Definition: AHD 1080P Lens angle: Fisheye 200 degrees Lens: 4 layers of optical glass Lens waterproof level: IP68 waterproof format: PAL positive image default power supply: DC3.3V Android connector: 12P standard connector working temperature: -20℃-+70℃ Applicable Equipment: car DVD / all-in-one, display, camera or other display of the lotus head video input interface Colour:black Material:plastic
Package Contents:
1 * Car 360 panoramic system camera set
Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
